680ES-PG

Valmistajan sivu: http://www.icsdiamondtools.eu

Esite

Tuotetiedot:

PowerGrit®!

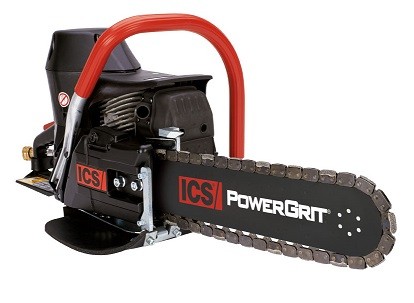

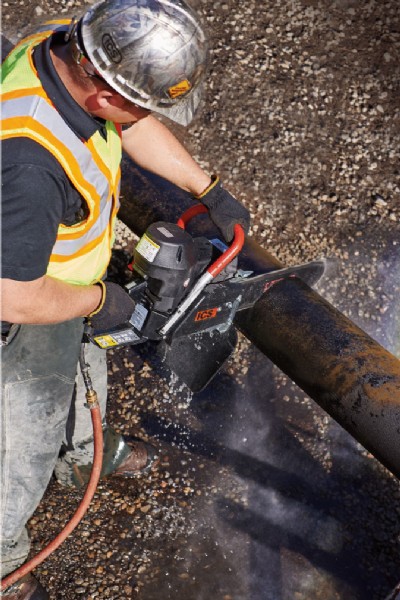

Built to provide a combination of performance and portability for cutting in-ground utility pipe, the 680ES-PG petrol powered utility chain saw with PowerGrit chain will change the way to cut pipe. This affordably priced petrol powered saw, allows you to cut up to 10" deep from one side into ductile iron, cast iron, PVC, HDPE and Insituform lining and is also designed to run the full line of MAX series chains. With a quick switch of guidebar, chain and drive sprocket, you have the ability to use this saw in masonry, stone and even reinforced concrete. Making it the most cost effective, versatile tool in your arsenal.

Tekniset tiedot:

Paino, kg

9,5

Laipan pituus, cm

25

Moottorin kierrosluku, rpm

11500 +/- 500 rpm (max) / 2,800 - 3,200 rpm

Moottorin teho

3.7 kW (5 hp) @ 9,500 rpm

Moottorityyppi

2-tahti, ilmajäähdytteinen

Ketjunopeus

34,5 m/s

Sahan rungon mitat, cm

P=46, K=29, L=25

Tärinätaso

7.2 m/s2 (K=1.0 m/s2) Etukahva 8.5 m/s2 (K=1.0 m/s2) Takakahva

Veden tarve, bar

Min 1.5

Polttoaineen sekoitussuhde

4% (25:1)

Polttoainesäiliön tilavuus, ltr

0,88

Vääntö, Nm

4.1 Nm @ 6,500 rpm
